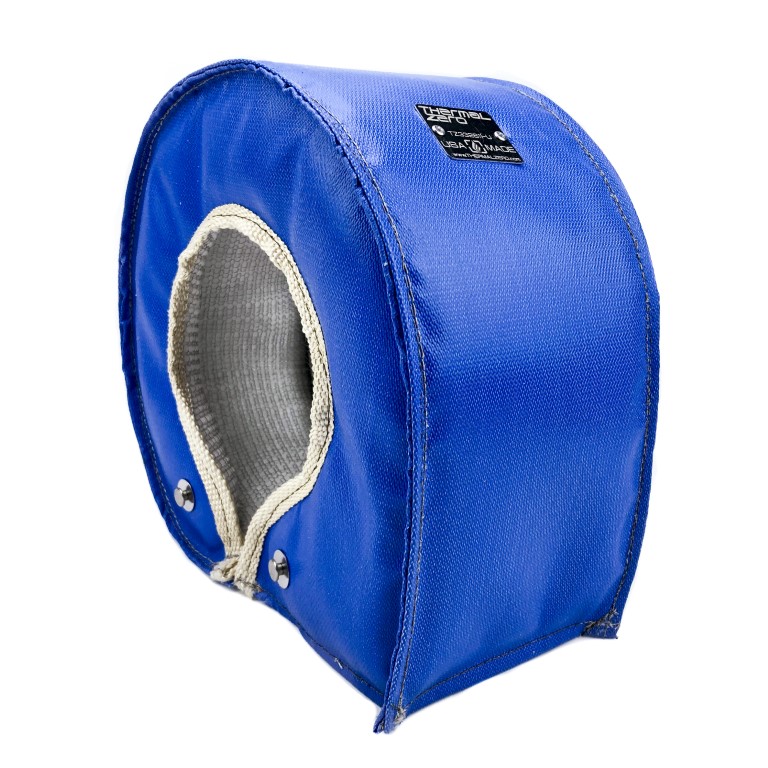

Universal Externally Wastegated T6 Turbo Heat Insulation Blanket

$130.00

  • Easy to install with stainless lacing anchors and supplied wire
  • Design fits most externally wastegated T6 turbo housings
  • Internally rated to over 2500°F direct heat
  • Made with pride in the USA

Description

Universal T6 turbo blanket.  Fits most all T6 turbo exhaust housings including most all Marine applications and Detroit Diesel turbochargers.  For most Borg Warner T6 S400 series please see part number TZ328511.

Thermal Zero turbo blankets go above and beyond when it comes to heat tolerance and durability.  The inner layer of the turbo blanket can handle over 2500 degrees Fahrenheit of direct heat.  The blankets are made with high quality 1 inch thick 6 pound density ceramic insulation material and covered with a silicone based outer shell that is colored either Black, Red, Blue, Chrome, or Gray. Since vibration on a turbocharger is inevitable we have created a more durable design.  Our turbo blankets feature a knitted wire mesh inner layer that separates the insulation material from the turbocharger housing, greatly increasing durability and reducing breakdown.

Installing a Thermal Zero Turbo blanket will cut down up to 80% of direct heat emitted from your turbocharger.  In turn this will allow the turbo to spool faster and be more efficient.

Not sure if this blanket will fit your turbo.  Check the known good fit turbo models below or measure your turbo and check the measurement picture above to verify it will be a good fit.



Suggested Turbocharger Models:

BorgWarner Turbochager# S500SX, S4D, S4D016, 178131, 178731, 199114, S4D, S4d016, 197461, 197459, 181490, BHT3B, 196290

Caterpiller Turbocharger# 0R6055, 0R6167, 0R6168, 4P2061, 4P2062, 9Y1907

Cummins Turbocharger# VT50, ST50

Detroit Diesel 6v71, 6v92, 8v71, 8v92, Series 60 engines, TMF5502, TV4502

Garrett Turbocharger # GT4718 / GT47RS, GTX4294R, GT5518, 465679-0001, 465679-5001, 465679-5001S, 465679-9001, 466191-0002, 466191-5002, 466191-5002S, 466191-9002

Holset Turbocharger# HX50, HT60 / HX60, HT3B, T46B

Precision Turbocharger# PT106, 8891, 8884

Turbonetics Turbocharger# T6 Y2K, T6 Thumper

Tial Turbocharger GT55

Semi Truck Fitment Information:

1980-2013 Caterpillar CAT 3406, 3406B, 3406C Engine

2013 Freightliner 108SD Cat 3406 Engines with Garrett Turbocharger Number 466191-9002
2013 Freightliner Cascadia Cat 3406 Engines with Caterpillar Turbocharger Number 0R6055
2013 Freightliner Columbia Cat 3406 Engines with BorgWarner Turbocharger Number 199114
2013 Freightliner M2 106 Cat 3406 Engines with Garrett Turbocharger Number 466191-5002
2013 Freightliner Sprinter 3500 Cat 3406 Engines with Garrett Turbocharger Number 465679-5001
2012 Freightliner 114SD Cat 3406 Engines with Garrett Turbocharger Number 465679-5001
2012 Freightliner Columbia Cat 3406 Engines with Garrett Turbocharger Number 466191-5002S
2012 Freightliner M2 112 Cat 3406 Engines with Garrett Turbocharger

1987-08 Mack Truck with E9-400/E9-450/E9-500 Engine



All Thermal Zero blankets are hand made here in Cincinnati, Ohio USA. If you can’t find exactly what you need or have questions about fitment? Call us at 513.696.9727, we probably make it or can help you.

Additional information

Weight 2 lbs
Dimensions 11 × 11 × 6 in
Blanketing Color

Black, Blue, Chrome/Silver, Gray, Red
